Topglass® UltimaGel

NATURAL ROOF LIGHTING-HIGH RESISTANCE AGAINST WEATHERING AND SOLAR DETERIORATION

Topglass® UltimaGel is a utilizing an innovative manufacturing process developed by CHP Technology, whereby UltimaGel 100 microns Gelcoat exclusively developed for Topglass is applied to the weather surface of the sheeting. Having 100 microns thick coating offers exceptional resistance against corrosive atmospheres, and providing protection against solar deterioration that will result in glass fiber showing.

  • 99% UV Resistance
  • 100 Microns gel coating
  • Longer lasting colour
  • Ultimate UV Abocorber by UVAS+
  • 25 Years warranty

สอบถามหาร้านตัวแทน

แจ้งพื้นที่และตำแหน่งหน้างานเพื่อหาร้านตัวแทนในพื้นที่

Key Benefits

– UltimaGel 100 micron gelcoated surface provides a longer life for light transmission and prevent glass showing.
– UltimaGel gel-coated surface, which is reactive thermo-set toprovide a high gloss surface.
– Topglass® UltimaGel, which is manufactured to meet the requirements of AS 4256:3.2006; resist UV degradation and yellowing much longer than is commonly experienced with general purpose grade translucent roofing products;
– Topglass® UltimaGel can be supplied in a variety of pigments and can be supplied as Topglass® UltimaGel. This innovative gelcoat additive provides excellent UVA and UVB block and offers exceptional heat and light data

Applications

Topglass Laboratory

1. Barcol Hardness (Barcol Impressor Model no.GYZJ.934)
2. Exposure Ultraviolet lamps M/C (Compile AS/NZS 2433)
3. Spectrophotometer (Model no. CM-3600A for measurement L,A,B)
4. Diffuse Light Tranmission M/C (AS/NZS 4257.4)
5. Impact Resistant M/C (Compile AS/NZS 4257.6)
6. QUV Accelerated Weathering Chamber UVB313 (ASTM G53)
7. Microscope Camera

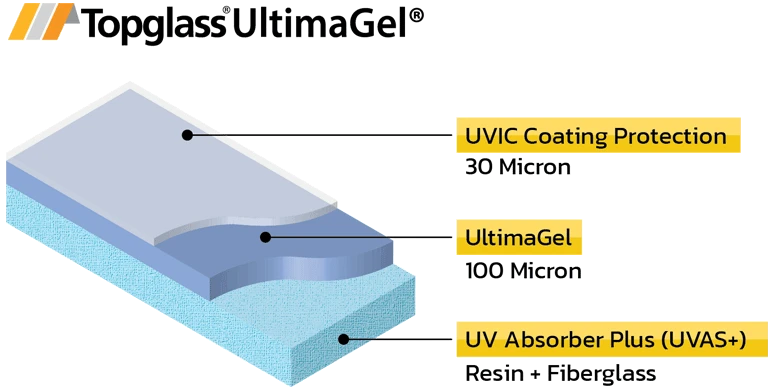

Spacification

เรซิ่น (Raw Material)
ใช้เรซิ่นคุณภาพสูง และผสมสาร UV Absorber Plus (UVAS+) เป็นสารที่ผลิตด้วยนาโนเทคโนโลยี ช่วยซึมซับรังสี UV ป้องกันรังสี UV ไม่ให้ผ่านลงมาด้านล่างผิวแผ่นได้อย่างมีประสิทธิภาพ

ชั้นเคลือบบน (Top Coating)
ชั้นเคลือบเจลคุณภาพสูงด้วยเทคโนโลยีการผลิตจากประเทศนิวซีแลนด์ มีความหนา 100 ไมครอน เพื่อการป้องกันรังสี UV อย่างมีประสิทธิภาพ

ใยแก้ว (Fiber Glass)
ใช้เส้นใยแก้วคุณภาพสูง เพื่อเพิ่มความแข็งแรงของแผ่นโปร่งแสงให้แผ่นมีอายุการใช้งานที่ยาวนาน ไม่กรอบแตกง่าย

ชั้นเคลือบล่าง (Bottom Coating)
Release film เนื่องจากไลน์ผลิตมีความยาวสูงกว่า 47m. ทำให้แผ่นที่ผ่านกระบวนการผลิตทำปฏิกิริยาสมบูรณ์แบบ จึงไม่จำเป็นต้องมีฟิล์มล่าง เพื่อป้องกัน เรซิ่นระเหิด

กระบวนการผลิต (Production Process)
CHP Technology Cumean Hydro Peroxide Activater. ระบบการผลิตที่ทันสมัยจาก ประเทศนิวซีแลนด์

ความหนา / น้ำหนัก (Thickness / Weight)
Thickness = 1.5 mm.
Weight = 2400 gsm.

ดาวน์โหลด

ข้อมูลทางเทคนิค สเปคสินค้า และรายละเอียดการใช้งาน

ติดต่อสอบถามข้อมูล

สอบถามข้อมูล ปรึกษาการใช้
สั่งซื้อสินค้า แอดไลน์มาคุยกับเรา

สอบถามข้อมูล ปรึกษาการใช้
สั่งซื้อสินค้า แอดไลน์มาคุยกับเรา

Color

Color : Opal

Light Transmission = 55%
Solar Transmission = 45%

55%

Light
Transmission

45%

Transmission

Color : Clear Green

Light Transmission = 75%
Solar Transmission = 69%

75%

Light
Transmission

69%

Transmission

ลูกค้าที่ไว้วางใจใช้แผ่นโปร่งแสงท็อปกลาส

นี่คือลูกค้าส่วนหนึ่งที่ไว้วางใจ เลือกใช้แผ่นโปร่งแสงท๊อปกลาส ในโครงการก่อสร้าง

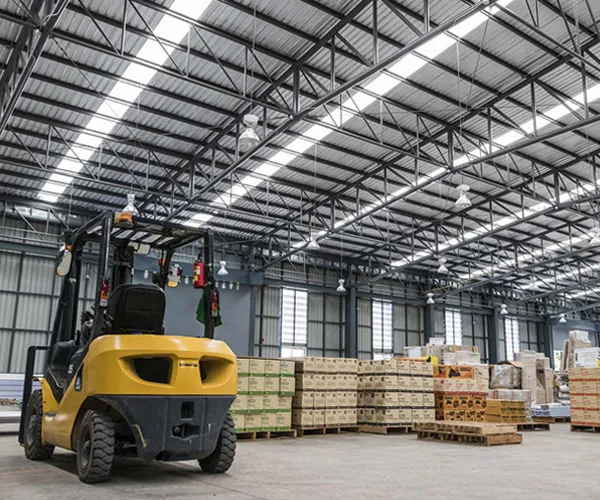

ภาพโครงการที่ใช้งานแผ่นโปร่งแสงของ บริษัท อินโน-คอนส์

Standards & Certifications

ISO 9001 : 2015

TIS 612 – 2549

AS/NZS 4256.3 : 2006

– ได้รับมาตรฐาน AS/ NZS 4256.3 :2006 Client BMP NO.535535 มาตรฐานจากออสเตรเลีย ที่ได้รับการยอมรับกว่า 90 ประเทศทั่วโลก

– ได้รับการรับรองคุณภาพการผลิต BSI Group จากประเทศจากออสเตรเลีย ซึ่งเป็นหน่วยงาน รับรองมาตรฐานผลิตภัณฑ์เป็นที่ยอมรับใน 150 ประเทศทั่วโลก

– ได้รับมาตรฐานอุตสาหกรรม มอก. 612-2549 ของประเทศไทย
