Topglass® GC SPF Hybrid

REDUCE HEAT NATURAL ROOF LIGHTING-HIGH RESISTANCE AGAINST WEATHERING AND SOLAR DETERIORATIO

One of the issue with skylight roof is heat load in the property resuling in unnecessary heat transfer into the property consequently consuming more electricity to cool the inside of the building. To overcome this issue, I-Cos Asia Co., Ltd. is most revolutionary and innovative product, Topglass GC SPF Hybrid, Soloar Protection Feature. Encompassing a unique manufacturing process similar to that used in the design and manufacture of modern sunglass eye ware, Topglass SPF Hybrid solar control roof lighting, selects and singles out Infra-Red (heat) plus harmful Ultraviolet rays, thereby preventing heat build-up and UV damage to Stock and Plant.

  • Reduced Heat Gain by almost 40% compared to normal fiberglass

  • Reflect solar transmission by almost 100% compared to normal fiberglass
  • Saves energy cost
  • Climatex Gel Coating 100 microns coating thickness life time non-fibre surfacing
  • 30 Years warranty

สอบถามหาร้านตัวแทน

แจ้งพื้นที่และตำแหน่งหน้างานเพื่อหาร้านตัวแทนในพื้นที่

Key Benefits

– Highly tested in Thailand shows solar reflection capability of Topglass GC SPF Hybrid almost double that of normal fiberglass products.
– Total Heat Gain by Topglass GC SPF Hybrid drops almost 40% compare to normal fixberglass products.
– Provides maximum visible light transmission whilst preventing unwanted solar transmission into a building.
– Reduces energy and air-conditioning costs along with the need for additional artificial lighting
– Virtually eliminates harmfuland UVB ultra violet rays from
entering a building.

Applications

– Air-conditioned buildings like supermarkets and malls.
– Food manufacturing buildings.
– Warehouses and retail outlets storing food and fresh produce.
– Bulk paper stores.
– Temperature-sensitive environments requiring high quality long-term
natural lighting.

Topglass Laboratory

1. Barcol Hardness (Barcol Impressor Model no.GYZJ.934)
2. Exposure Ultraviolet lamps M/C (Compile AS/NZS 2433)
3. Spectrophotometer (Model no. CM-3600A for measurement L,A,B)
4. Diffuse Light Tranmission M/C (AS/NZS 4257.4)
5. Impact Resistant M/C (Compile AS/NZS 4257.6)
6. QUV Accelerated Weathering Chamber UVB313 (ASTM G53)
7. Microscope Camera

Spacification

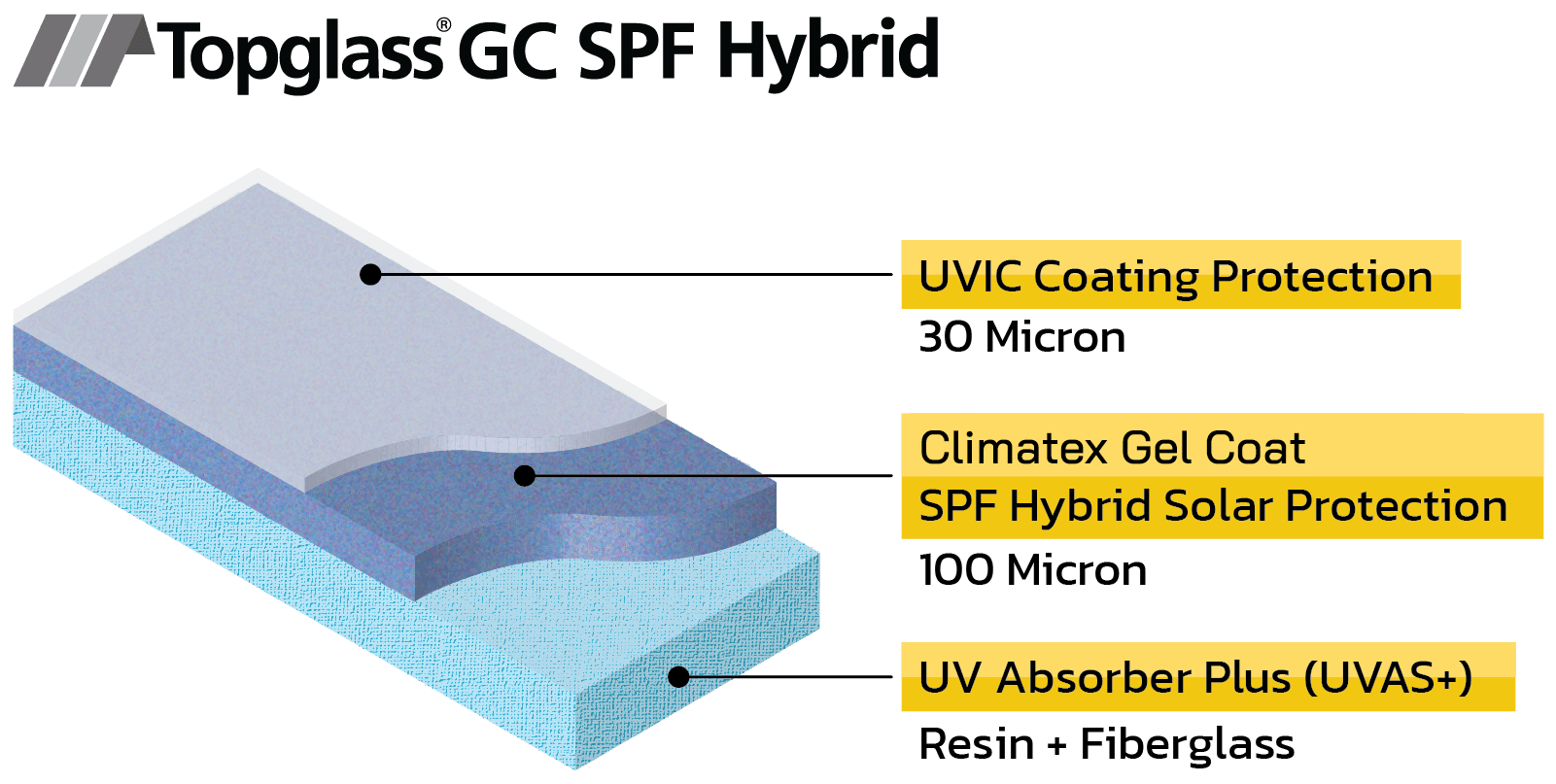

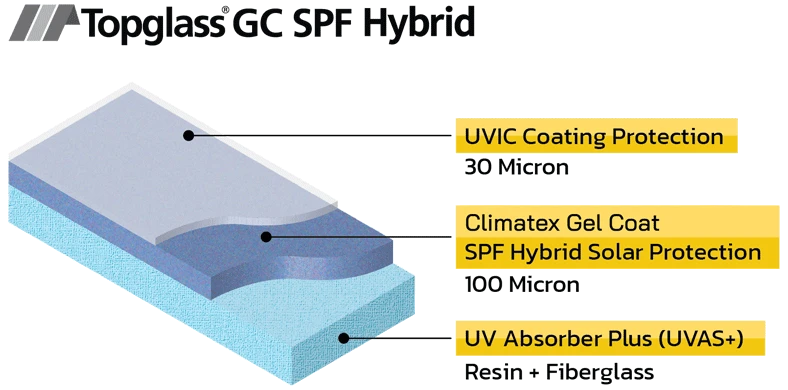

เรซิ่น (Raw Material)
ใช้เรซิ่นคุณภาพสูง และผสมสาร UV Absorber Plus (UVAS+) เป็นสารที่ผลิตด้วยนาโนเทคโนโลยี ช่วยซึมซับรังสี UV ป้องกันรังสี UV ไม่ให้ผ่านลงมาด้านล่างผิวแผ่นได้อย่างมีประสิทธิภาพ

ชั้นเคลือบบน (Top Coating)
EXO-SET 205 ชั้นเคลือบเจลคุณภาพสูงด้วยเทคโนโลยีการผลิตจากประเทศนิวซีแลนด์ มีความหนา 100 ไมครอน เพื่อการป้องกันรังสี UV อย่างมีประสิทธิภาพ ผสมสารสะท้อนความร้อน (Solar Protective Coating) เพื่อช่วยในการสะท้อนความร้อนไม่ให้เข้าสู่ตัวอาคาร

ใยแก้ว (Fiber Glass)
ใช้เส้นใยแก้วคุณภาพสูง เพื่อเพิ่มความแข็งแรงของแผ่นโปร่งแสงให้แผ่นมีอายุการใช้งานที่ยาวนาน ไม่กรอบแตกง่าย

ชั้นเคลือบล่าง (Bottom Coating)
Release film เนื่องจากไลน์ผลิตมีความยาวสูงกว่า 47m. ทำให้แผ่นที่ผ่านกระบวนการผลิตทำปฏิกิริยาสมบูรณ์แบบ จึงไม่จำเป็นต้องมีฟิล์มล่าง เพื่อป้องกัน เรซิ่นระเหิด

กระบวนการผลิต (Production Process)
CHP Technology Cumean Hydro Peroxide Activater. ระบบการผลิตที่ทันสมัยจาก ประเทศนิวซีแลนด์

ความหนา / น้ำหนัก (Thickness / Weight)
Thickness = 1.5 mm.
Weight = 2400 gsm.

Solar Energy Performance

Solar Energy Performance
Product ASHRAE Fundamentals ISO 9050 AS/NZS 4257.4
Solar Heat Gain
Coefficient
Shading
Coefficient
%Visible
Light Transmittance
%Diffuse
Light Transmission
Tolerance ±0.02 ±0.02 ±3 ±3
Topglass®
GC SPF Hybrid
0.21 0.24 11.8 44

ดาวน์โหลด

ข้อมูลทางเทคนิค สเปคสินค้า และรายละเอียดการใช้งาน

ติดต่อสอบถามข้อมูล

สอบถามข้อมูล ปรึกษาการใช้
สั่งซื้อสินค้า แอดไลน์มาคุยกับเรา

สอบถามข้อมูล ปรึกษาการใช้
สั่งซื้อสินค้า แอดไลน์มาคุยกับเรา

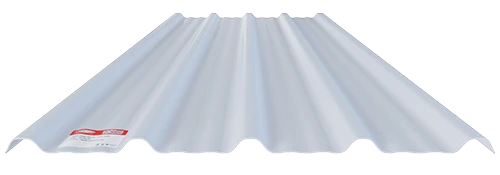

Color

Color : SPF Hybrid

Visible Light Transmittance = 11.8%
Diffuse Light Transmission = 44%

11.8%

Visible Light
Transmission

44%

Visible Transmission

ลูกค้าที่ไว้วางใจใช้แผ่นโปร่งแสงท็อปกลาส

นี่คือลูกค้าส่วนหนึ่งที่ไว้วางใจ เลือกใช้แผ่นโปร่งแสงท๊อปกลาส ในโครงการก่อสร้าง

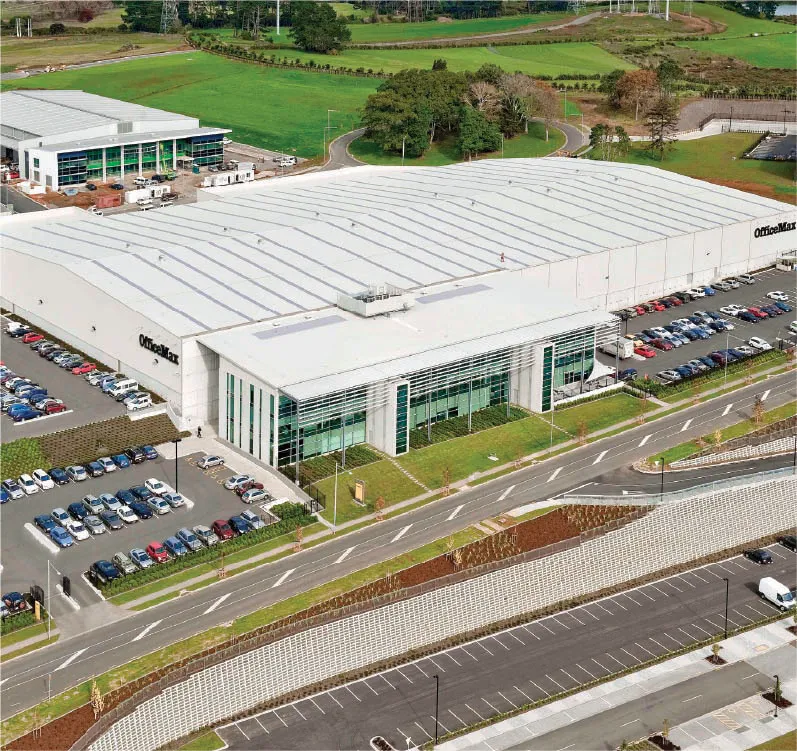

ภาพโครงการที่ใช้งานแผ่นโปร่งแสงของ บริษัท อินโน-คอนส์

Standards & Certifications

ISO 9001 : 2015

TIS 612 – 2549

AS/NZS 4256.3 : 2006

– ได้รับมาตรฐาน AS/ NZS 4256.3 :2006 Client BMP NO.535535 มาตรฐานจากออสเตรเลีย ที่ได้รับการยอมรับกว่า 90 ประเทศทั่วโลก

– ได้รับการรับรองคุณภาพการผลิต BSI Group จากประเทศจากออสเตรเลีย ซึ่งเป็นหน่วยงาน รับรองมาตรฐานผลิตภัณฑ์เป็นที่ยอมรับใน 150 ประเทศทั่วโลก

– ได้รับมาตรฐานอุตสาหกรรม มอก. 612-2549 ของประเทศไทย
