Topglass® GC Ultra-Safe

HIGH IMPACT CORROSION RESISTANT GLASS REINFORCED ROOFING AND CLADDING

Where there is a possibility of FRP translucent fiberglass roofing sheets posing a danger to foot traffic on the roof or a possibility of not being able to install safety netting under the FRP translucent fiberglass roofing sheets, I-Cons Asia had jointly developed a heavy duty and high impact roof lighting system to alleviate these concerns. Aptly named Topglass GC Ultra-Safe, the product utillses a heavy duty, woven roving reinforcing system positioned within the resin matrix, thereby providing exceptional strength. This made Topglass GC Ultra-Safe trafficable after meeting the impact strength tests of
AS 4256.3 clause 11.3, AS 4040.4:1996

  • Trafficable FRP where safety wire mesh below FRP is not abailable

  • Meets impact strength requirement specified by AS/NZS 4040.4 ;1995

  • Climatex Gel Coating 100 microns coating thickness life time non-fibre surfacing

  • Ultimate UV Absorber by UVAS+ new generation nano ultra-violet absorber
  • 30 Years warranty

สอบถามหาร้านตัวแทน

แจ้งพื้นที่และตำแหน่งหน้างานเพื่อหาร้านตัวแทนในพื้นที่

Key Benefits

Whilst Topglass GC Ultra-Safe is classified as heavy duty, meets the impact test of AS 4040, satisfying the reequirements of AS 4256.3, and can support foot traffic, long term degradation and or post roof installation impact damage can seriously affect the performance of the sheeting. In order to comply with the requirements of AS 1562.3:2006 Part 3 Plastic, protect the weather surface coating and provide continual structural strength, all FRP products should be protected from foot traffic, therefore a suitable proprietary aluminium walkway is always recommended

Weight/Thickness of sheeting
Topglass GC Ultra-Safe is supplied as standard weight of 3660g/m2 (2.5 mm)

Applications

– Educational facilities and Public Assembly areas where there is a danger of persons climbing onto a roof.
– Fertilizer Plants.
– Chemical and Powder-coating Plants.
– Wastewater treatment plants.
– Salt Extraction Facilities.
– Saver marine environments.
– Natural roof lighting where safety mesh is not installed.
– Wood, Pulp and Paper Plants.

Topglass Laboratory

1. Barcol Hardness (Barcol Impressor Model no.GYZJ.934)
2. Exposure Ultraviolet lamps M/C (Compile AS/NZS 2433)
3. Spectrophotometer (Model no. CM-3600A for measurement L,A,B)
4. Diffuse Light Tranmission M/C (AS/NZS 4257.4)
5. Impact Resistant M/C (Compile AS/NZS 4257.6)
6. QUV Accelerated Weathering Chamber UVB313 (ASTM G53)
7. Microscope Camera

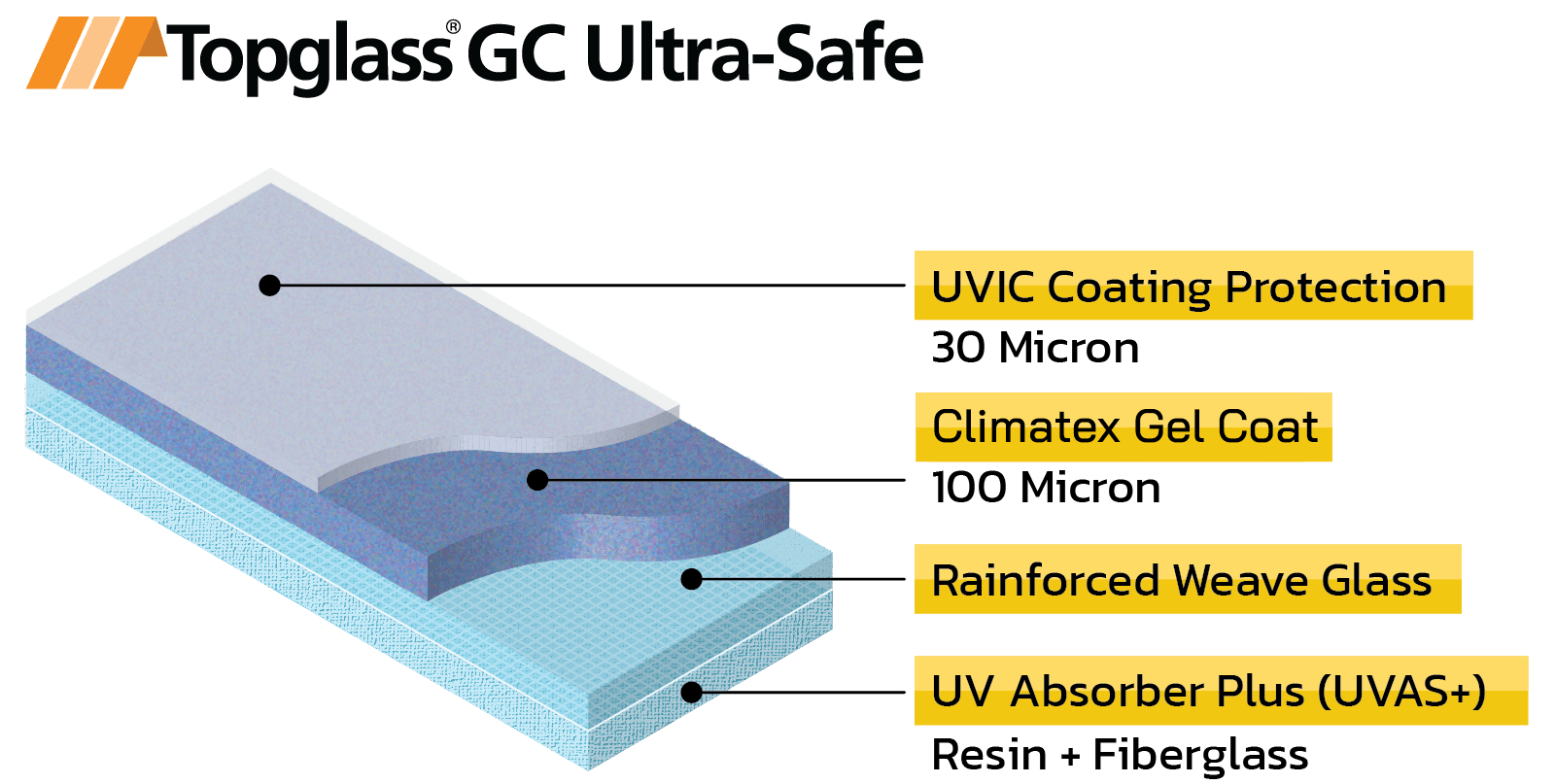

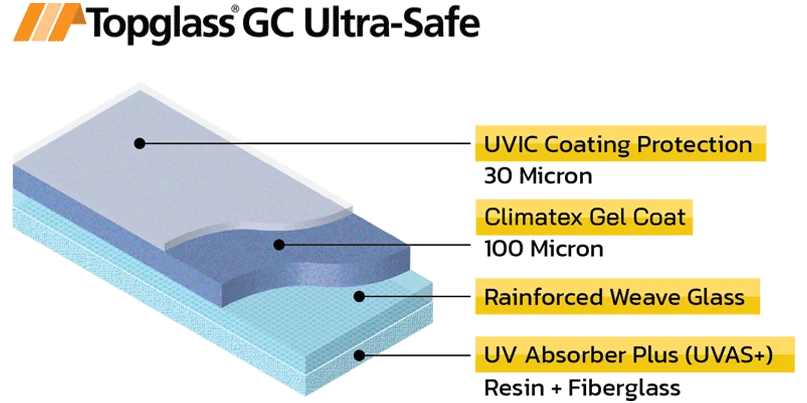

Spacification

เรซิ่น (Raw Material)
ใช้เรซิ่นคุณภาพสูง และผสมสาร UV Absorber Plus (UVAS+) เป็นสารที่ผลิตด้วยนาโนเทคโนโลยี ช่วยซึมซับรังสี UV ป้องกันรังสี UV ไม่ให้ผ่านลงมาด้านล่างผิวแผ่นได้อย่างมีประสิทธิภาพ

ชั้นเคลือบบน (Top Coating)
EXO-SET 205 ชั้นเคลือบเจลคุณภาพสูงด้วยเทคโนโลยีการผลิตจากประเทศนิวซีแลนด์ มีความหนา 100 ไมครอน เพื่อการป้องกันรังสี UV อย่างมีประสิทธิภาพ

เส้นใยตาราง (Safety Net)
เส้นใยตาข่ายเสริมแรง ทำให้สามารถเดินบนแผ่นใสได้ ซึ่งผ่านตามมาตรฐานการทดสอบ BRANZ AUSTRALIA (AS/NZS 4040)

ใยแก้ว (Fiber Glass)
ใช้เส้นใยแก้วคุณภาพสูง เพื่อเพิ่มความแข็งแรงของแผ่นโปร่งแสงให้แผ่นมีอายุการใช้งานที่ยาวนาน ไม่กรอบแตกง่าย

ชั้นเคลือบล่าง (Bottom Coating)
Release film เนื่องจากไลน์ผลิตมีความยาวสูงกว่า 47m. ทำให้แผ่นที่ผ่านกระบวนการผลิตทำปฏิกิริยาสมบูรณ์แบบ จึงไม่จำเป็นต้องมีฟิล์มล่าง เพื่อป้องกัน เรซิ่นระเหิด

กระบวนการผลิต (Production Process)
CHP Technology Cumean Hydro Peroxide Activater. ระบบการผลิตที่ทันสมัยจาก ประเทศนิวซีแลนด์

ความหนา / น้ำหนัก (Thickness / Weight)
Thickness = 1.5 mm.
Weight = 2400 gsm.

ดาวน์โหลด

ข้อมูลทางเทคนิค สเปคสินค้า และรายละเอียดการใช้งาน

ติดต่อสอบถามข้อมูล

สอบถามข้อมูล ปรึกษาการใช้
สั่งซื้อสินค้า แอดไลน์มาคุยกับเรา

สอบถามข้อมูล ปรึกษาการใช้
สั่งซื้อสินค้า แอดไลน์มาคุยกับเรา

Color

Color : Opal

Light Transmission = 45%
Solar Transmission = 30%

45%

Light
Transmission

30%

Transmission

Color : Clear Green

Light Transmission = 60%
Solar Transmission = 53%

60%

Light
Transmission

53%

Transmission

ลูกค้าที่ไว้วางใจใช้แผ่นโปร่งแสงท็อปกลาส

นี่คือลูกค้าส่วนหนึ่งที่ไว้วางใจ เลือกใช้แผ่นโปร่งแสงท๊อปกลาส ในโครงการก่อสร้าง

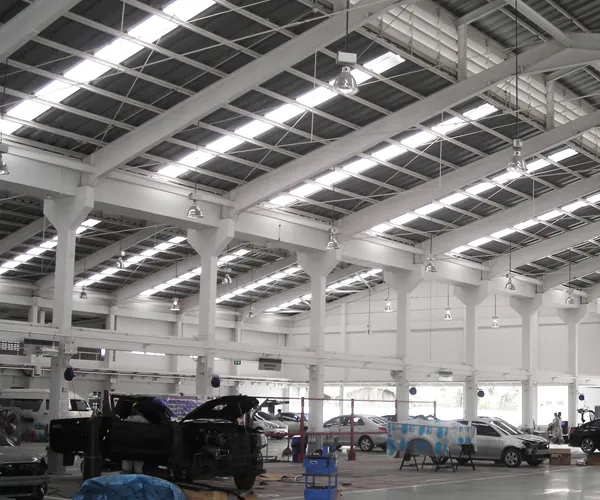

ภาพโครงการที่ใช้งานแผ่นโปร่งแสงของ บริษัท อินโน-คอนส์

Standards & Certifications

ISO 9001 : 2015

TIS 612 – 2549

AS/NZS 4256.3 : 2006

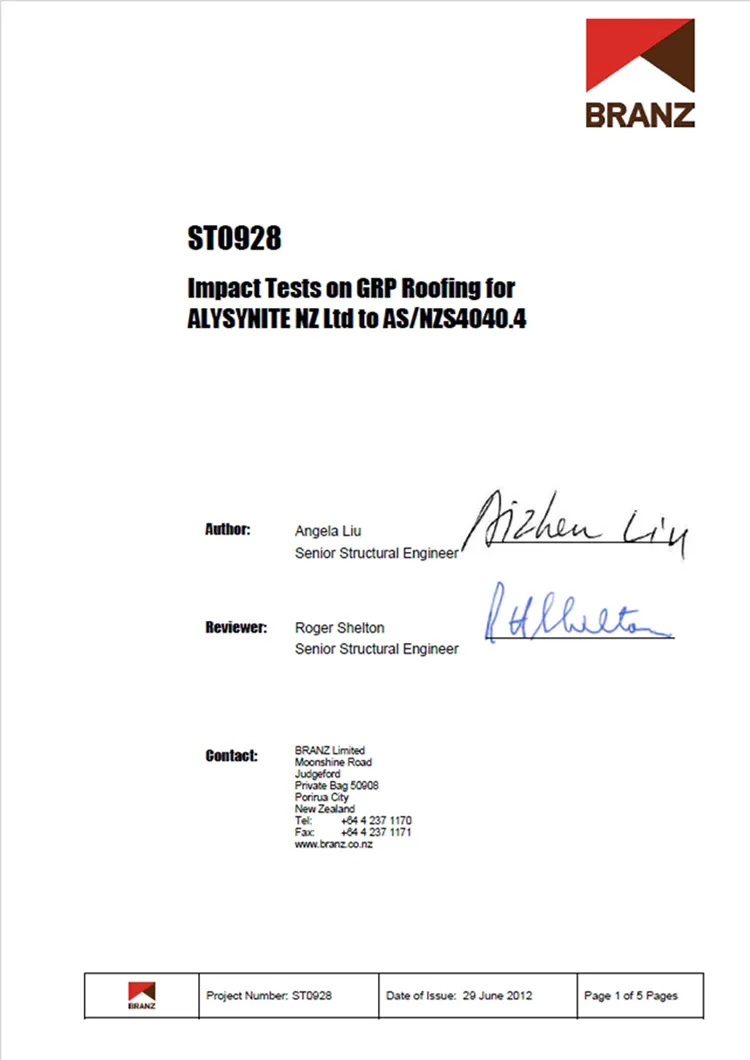

Impact Tests on GRP Roofing AS/NZS4040.4

– ได้รับมาตรฐาน AS/ NZS 4256.3 :2006 Client BMP NO.535535 มาตรฐานจากออสเตรเลีย ที่ได้รับการยอมรับกว่า 90 ประเทศทั่วโลก

– ได้รับการรับรองคุณภาพการผลิต BSI Group จากประเทศจากออสเตรเลีย ซึ่งเป็นหน่วยงาน รับรองมาตรฐานผลิตภัณฑ์เป็นที่ยอมรับใน 150 ประเทศทั่วโลก

– ได้รับมาตรฐานอุตสาหกรรม มอก. 612-2549 ของประเทศไทย
