Topglass

Topclad® GC
HEAVY DUTY CORROSION RESISTANT, SOLID-COLOURED ROOFING AND CLADDING SYSTEM
In highly corrosive industrial sites and areas of high salt and contamination, any paint coatings on roofing and cladding such as aluminium and steel may not perform as expected. To address these concerns, we manufacture a unique solid-coloured heavy duty roofing and cladding material utilising advanced FRP technology to formulate a corrosive resistant cladding system for use as an innovative replacement for traditional materials. This is our Topglass Topclad GC.


Key Benefits
– The surface coatings and substrate used in the manufacture of Topglass GC Topclad have been designed specifically to withstand most corrosive atmospheres.
– Has on known reaction with any construction materials and unaffected by solvents including hydrocarbons and has ability in resisting to most acids and alkalis.

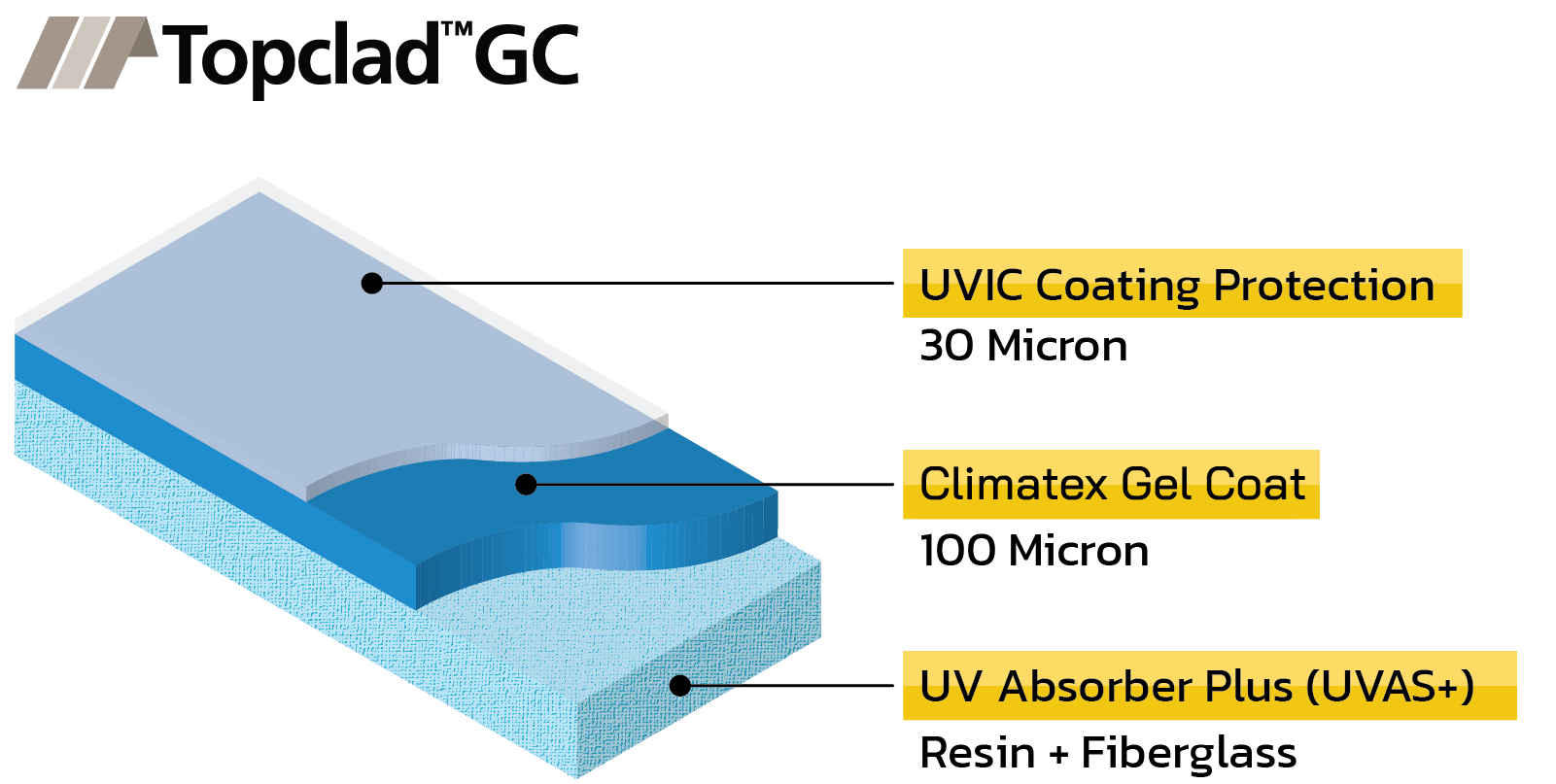

– Topglass GC Topclad is solid-coloured to match modern roof colurs (Subject to pigment availability) this is achieved by applying a 100 micron* gel-coat layer to the FRP sheeting substrate.
– Advanced technology associated with the Inno-cons Gel-coat manufacturing process allows different solid colour pigmentation to be applied to each side of the sheet, particularly important where the underside of the sheet is not covered by a membrane.
– Abailable to match a wide range of roof profiles including flat sheet.
– Lightweight cladding for easy handing and installation.
– Reduces solar heat transmission.

Applications
– Fertilizers buildings
– Power plants
– Petroleum and Chemical Plants
– Galvanizing Plants
– Acid Plants and Smelters
– Effluent tank cladding;
– Extreme marine environments;
– Buildings in geothermal areas
Topglass Laboratory
1. Barcol Hardness (Barcol Impressor Model no.GYZJ.934)
2. Exposure Ultraviolet lamps M/C (Compile AS/NZS 2433)
3. Spectrophotometer (Model no. CM-3600A for measurement L,A,B)
4. Diffuse Light Tranmission M/C (AS/NZS 4257.4)
5. Impact Resistant M/C (Compile AS/NZS 4257.6)
6. QUV Accelerated Weathering Chamber UVB313 (ASTM G53)
7. Microscope Camera
Spacification
เรซิ่น (Raw Material)
Vinyl Ester Resin เป็นการผลิตด้วยกรรมวิธีเฉพาะจากนิวซีแลนด์ มีสีทึบ ซึงแผ่น ที่ผลิตจะมีความแข็งแรง และทนทานต่อการกัดกร่อนจากสารเคมี
ชั้นเคลือบบน (Top Coating)
EXO-SET 205 ชั้นเคลือบเจลคุณภาพสูงด้วยเทคโนโลยีการผลิตจากประเทศนิวซีแลนด์ มีความหนา 100 ไมครอน เพื่อการป้องกันรังสี UV อย่างมีประสิทธิภาพ
ใยแก้ว (Fiber Glass)
ใช้เส้นใยแก้วคุณภาพสูง เพื่อเพิ่มความแข็งแรงของแผ่นโปร่งแสงให้แผ่นมีอายุการใช้งานที่ยาวนาน ไม่กรอบแตกง่าย
ชั้นเคลือบล่าง (Bottom Coating)
Release film เนื่องจากไลน์ผลิตมีความยาวสูงกว่า 47m. ทำให้แผ่นที่ผ่านกระบวนการผลิตทำปฏิกิริยาสมบูรณ์แบบ จึงไม่จำเป็นต้องมีฟิล์มล่าง เพื่อป้องกัน เรซิ่นระเหิด
กระบวนการผลิต (Production Process)
CHP Technology Cumean Hydro Peroxide Activater. ระบบการผลิตที่ทันสมัยจาก ประเทศนิวซีแลนด์
ความหนา / น้ำหนัก (Thickness / Weight)
The standard weight for Topclad GC is 2800 GSM (1.9 mm)
Other weights up to 3660 GSM (2.5 mm) are available subject to minimum order.

Color
Standards & Certifications

ISO 9001 : 2015

TIS 612 – 2549

AS/NZS 4256.3 : 2006

– ได้รับมาตรฐาน AS/ NZS 4256.3 :2006 Client BMP NO.535535 มาตรฐานจากออสเตรเลีย ที่ได้รับการยอมรับกว่า 90 ประเทศทั่วโลก
– ได้รับการรับรองคุณภาพการผลิต BSI Group จากประเทศจากออสเตรเลีย ซึ่งเป็นหน่วยงาน รับรองมาตรฐานผลิตภัณฑ์เป็นที่ยอมรับใน 150 ประเทศทั่วโลก
– ได้รับมาตรฐานอุตสาหกรรม มอก. 612-2549 ของประเทศไทย
