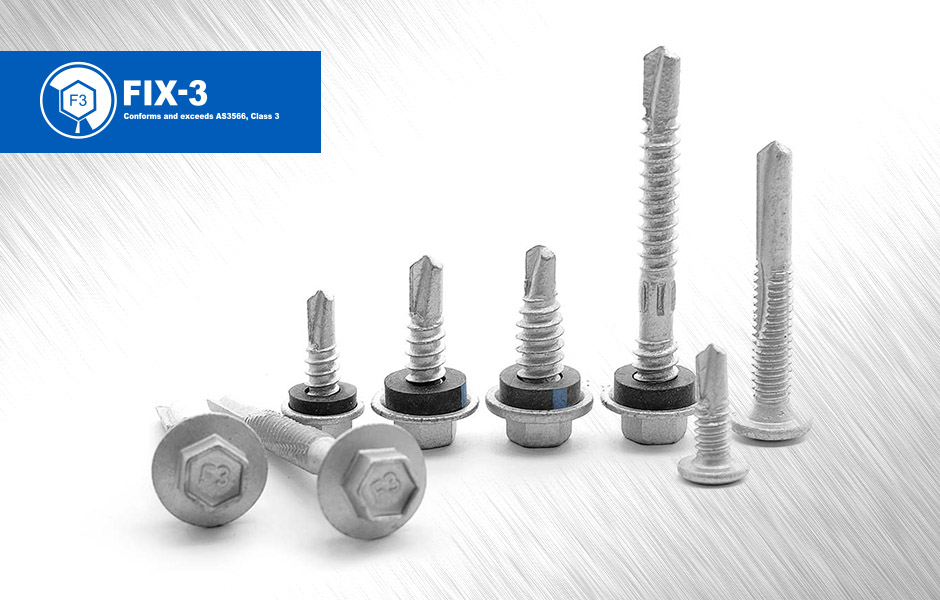

FIX-3 self-drilling fasteners

    FIX-3 self-drilling fasteners are manufactured in accordance to the international standard AS3566 requirements including the design, physical properties and corrosive resistance requirements for the fastening of non-ferrous metals, tiles, cement sheets, window frames, thin metal sheets, board, and etc.
     FIX-3 offers the widest range of self-drilling fasteners in Asia from Class-3 corrosion resistance requirement and from the smallest 5 gauge (3.2mm) to 16 gauge (6.8mm) in diameter and from the shortest 10mm to 175mm long fasteners.

Specification

Fix-Green Screw Feature

Screw Head

– Push metal sheet up to prevent leakage
– Keep position of metal sheet when lead is apply

Sabre Point

– Patented SABRE drilling point is the most reliable and fastest drilling piont capable of up to 20 mm thick steel
– Sharp point specially design for timberapplication

Shank Protection

– Prevent vibration
– Prevent over tightening

TrueBlue EPDM Dekseal

– Non-conductive EPDM seal exceeds AS 3566 standard requirement
– Prevents electro-galranic conrosion compare to conductive EPDM
– High elastic high rength and high anti-UV to last the litetime of the foof

Name : Fix 3 12-24×50 HS
Gauge : 12
T.P.I. : 24
Drill Point : T5
Length : 50 mm.

Name : Fix 3 12-24×65 HS
Gauge : 12
T.P.I. : 24
Drill Point : T5
Length : 65 mm.

Name : Fix 3 12-24×38 HS
Gauge : 12
T.P.I. : 24
Drill Point : T5
Length : 38 mm.

Name : Fix 3 12-24×38 WAF
Gauge : 12
T.P.I. : 24
Drill Point : T5
Length : 38 mm.

Name : Fix 3 12-14×48 HHS
Gauge : 12
T.P.I. : 14
Drill Point : TEK Sabre Point
Length : 48 mm.

Name : Fix 3 12-14×55 HHS
Gauge : 12
T.P.I. : 14
Drill Point : TEK Sabre Point
Length : 55 mm.

Name : Fix 3 12-14×65 HHS
Gauge : 12
T.P.I. : 14
Drill Point : TEK Sabre Point
Length : 65 mm.

Name : Fix 3 12-14×75 HHS
Gauge : 12
T.P.I. : 14
Drill Point : TEK Sabre Point
Length : 75 mm.

Name : Fix 3 12-14×80 HHS
Gauge : 12
T.P.I. : 14
Drill Point : TEK Sabre Point
Length : 80 mm.

Name : Fix 3 12-14×90 HHS
Gauge : 12
T.P.I. : 14
Drill Point : TEK Sabre Point
Length : 90 mm.

Name : Fix 3 12-14×115 HHS
Gauge : 12
T.P.I. : 14
Drill Point : TEK Sabre Point
Length : 115 mm.

Name : Fix 3 10-16×16 HS
Gauge : 10
T.P.I. : 16
Drill Point : TRP
Length : 16 mm.

Name : Fix 3 10-16×20 HS
Gauge : 10
T.P.I. : 16
Drill Point : TRP
Length : 20 mm.

Name : Fix 3 12-14×20 HS
Gauge : 10
T.P.I. : 14
Drill Point : TEK
Length : 20 mm.

Name : Fix 3 12-14×30 HS
Gauge : 10
T.P.I. : 14
Drill Point : TEK
Length : 30 mm.

Name : Fix 3 15-15×20 HS
Gauge : 15
T.P.I. : 15
Drill Point : TEK
Length : 20 mm.

Name : Fix 3 10-24×16 WAF
Gauge : 10
T.P.I. : 24
Drill Point : TEK
Length : 16 mm.

Name : Fix 3 10-24×22 WAF
Gauge : 10
T.P.I. : 24
Drill Point : TEK
Length : 22 mm.

AS 3566 Class 3 Regulation

(A) AS3566 CLASS-3 ACCELERATED TESTING COMPLIANCE

1. Salt Spray Test in accordance with AS2331.3.1 – 1,000 hrs (less than 5% red rust)

2. Kesternich Test in accordance with DIN 50018 – 15 cycles (less than 5% red rust)

3. Humidity Test 100% Humidity in accordance with ASTM D2247 – 1,000 hrs (no cracking,  flaking and peeling)

4. Ultraviolet Test in accordance with ASTM G154 – 2,000 hrs (less than 5% red rust)

(B) AS3566 CLASS-3 METALLIC COATING COMPLIANCE

1. Mechanically Coated tin/zinc -20% to 30%tin, balanced zinc

2. Minimum Porosity rating of mechanically plated coating – 8

3. Minimum Thickness of metallic coating -25 micron

Climatex-3 Corrosion Protection Coating System

Heat Treatment
Controlled heat treatment process release hydrogen preventing hydrogen embrittlement. Also well controlled hardness on both surface and core of fastener prevents all matallurical defects.

Mechanical Sacrificial
Coat Minimum % zinc not less than 98% with minimum coat 25 micron thickness that conforms to AS3566 class 3

Polymer Barrier Coat
15 micron of polymer resin coat forms a high performance barrier against humidity, oxidation, heat chemical and scratches

Warranty 20 Years

Characterised by fall-out from adjoining severe industrial environments or where small industries lead to signif icant industrial fall-out. Generally includes other service buildings located near heavy industrial plants, including out-buildings of the plant itself.
